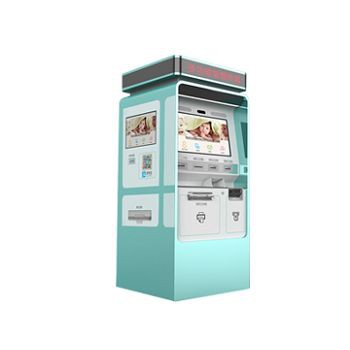

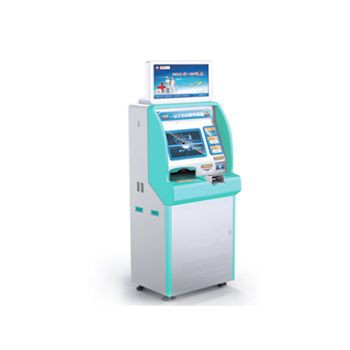

ਮੈਡੀਕਲ ਐਲਸੀਡੀ ਟਚ ਇਸ਼ਤਿਹਾਰਬਾਜ਼ੀ ਪ੍ਰਦਰਸ਼ਤ

RS-RP01

RS-RP02

RS-RP03

RS-RP04

LCD Screen / Touch Screen

Size

19 / 21.5"

Touch Screen

Capacitance touch screen (optional infrared screen)

Printer

HP1108 / HP403D Laser Printer

Basic Peripheral

Bar code reader, magnetic stripe card reader, metal keyboard

Auxiliary equipment (optional)

Internal three-in-one card reader, contactless card reader, receipt printer, medical insurance card reader, ID card reader.

Voltage supply

AC220V±10%

Cabinet

Surface material

Cold rolled steel plate, metal baking varnish

Installation method

Fixed in the back plate, punched or erected on the ground

Body color

Silver gray, silver, champagne, black (according to standard color card) (screen printing hospital LOGO)

Environmental Requirements

Operating Temperature

0℃～55℃

Operating Humidity

20%～80% (No condensation)

Storage Temperature

-20℃～65℃

Storage Humidity

10%～90% (No condensation)

Power

Working Power

AC 110V～240V 50/ 60Hz

Rated Power

160W

160W

160W

160W

Built-in Speaker

2×8Ω / 3W

2×8Ω / 3W

2×8Ω /5W

2×8Ω /

Size / Weight

Dimensions

1410 × 470 × 340

1400 × 500 × 270

1430 × 450 × 250

1430 × 450 × 250

Net Weight

40Kg

40Kg

43Kg

43Kg

Host Configuration

Wireless Module

Provide a 5dB antenna at the top of the back of the chassis for signal reception.

SATA Hard Drive

Optional high-speed SATA hard drive inside the chassis

Host Configuration

I3/ I5/ 4G/ 128GSSD/
